冷軋鋼品SPCC(JISG3141)

產品敘述

冷軋是以熱軋鋼捲為原料,經過冷軋生產的鋼板。

通過冷軋,可以得到厚度更薄、精度更高的冷軋帶鋼和鋼板,平直、表面光潔度高、不易變形,易於進行塗鍍加工,用途廣泛,主要應用於汽車鈑金、印製鐵桶、家電產品、捲門、商品貨架、自行車等行業。

尺寸規格

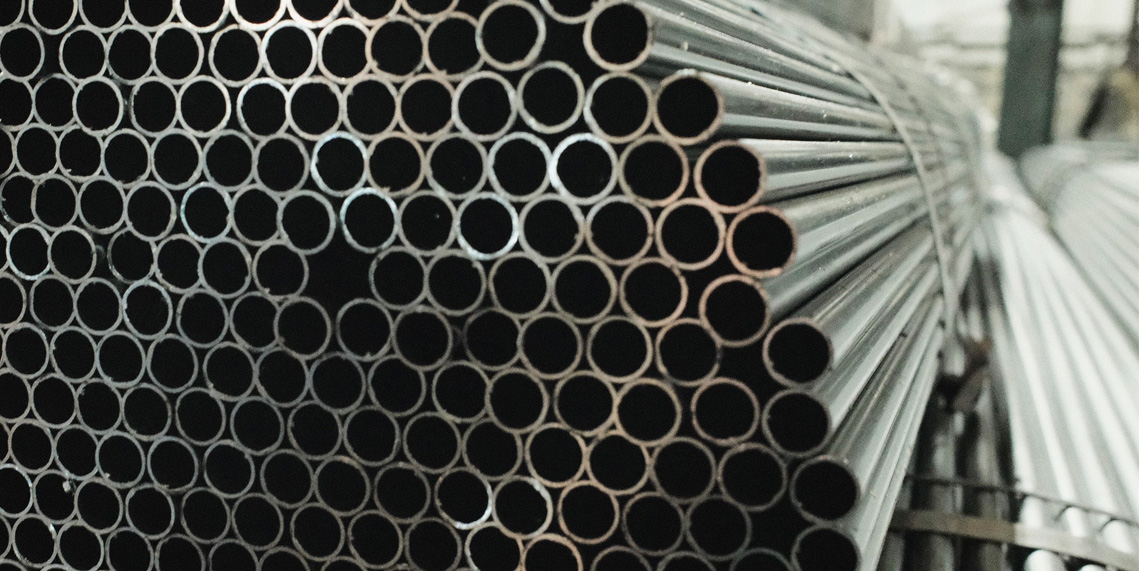

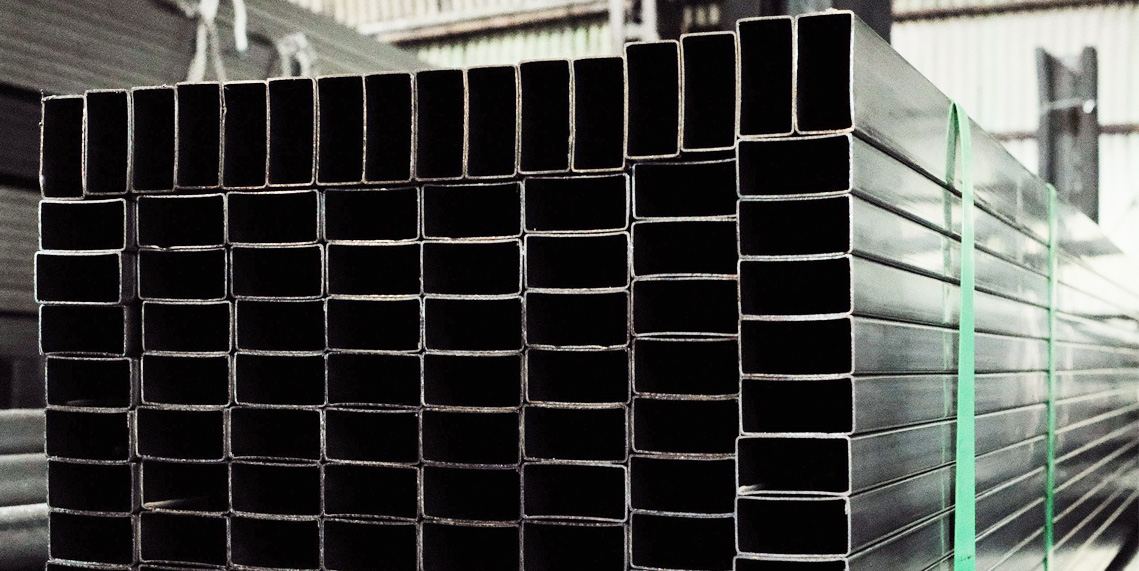

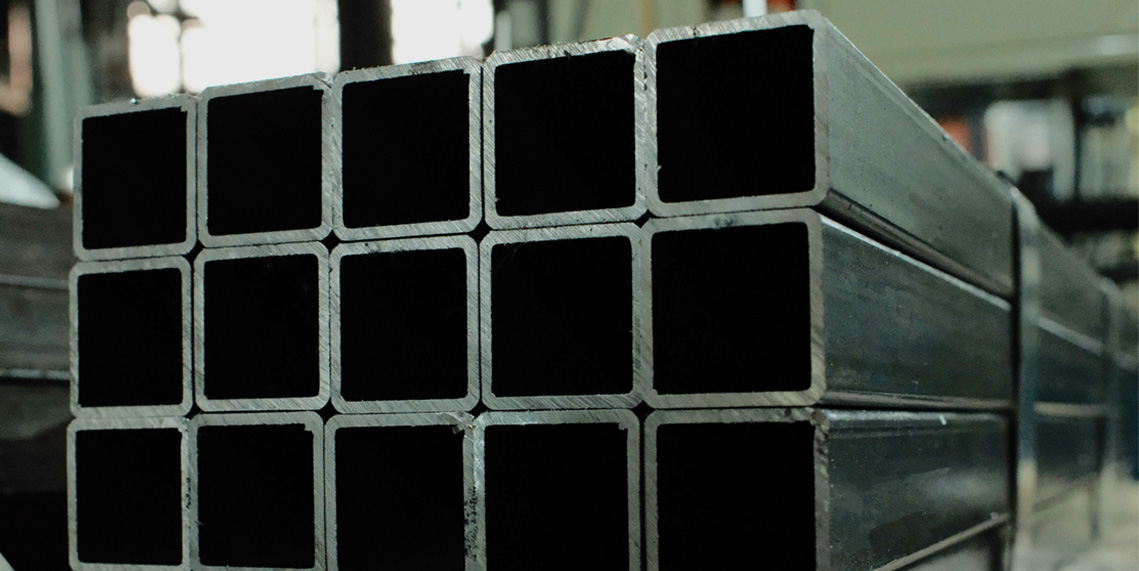

圓管 正方管 長方管
圓管(mm) 厚度(mm) 外徑(mm) 厚度(mm) 外徑(mm) 厚度(mm)
12.7 1.0~1.2 12.0x12.0 1.0~1.2 10.0x20.0 1.0~1.2
13.0 1.0~1.2 16.0x16.0 1.0~1.2 10.0x30.0 1.0~1.2
15.9 1.0~1.2 16.8x16.8 1.0~1.2 10.0x40.0 1.0~1.2
19.1 1.0~1.2 19.0x19.0 1.0~1.2 13.0x27.0 1.0~1.2
21.3 1.0~1.2 20.0x20.0 1.0~1.2 13.0x38.0 1.0~1.2
22.2 1.0~1.2 24.0x24.0 1.0~1.2 14.0x32.0 1.0~1.2
25.4 1.0~1.2 25.0x25.0 1.0~1.2 15.0x20.0 1.0~1.2
26.5 1.0~1.2 25.4x25.4 1.0~1.2 15.0x30.0 1.0~1.2
28.6 1.0~1.2 28.0x28.0 1.0~1.2 20.0x30.0 1.0~1.2
31.8 1.0~1.2 28.6x28.6 1.0~1.2 20.0x40.0 1.0~1.2
35.0 1.0~1.2 30.0x30.0 1.0~1.2 20.0x50.0 1.0~1.2
38.1 1.0~1.2 31.8x31.8 1.0~1.2 20.0x60.0 1.0~1.2
42.0 1.0~1.2 33.0x33.0 1.0~1.2 25.0x38.0 1.0~1.2
42.7 1.0~1.2 35.0x35.0 1.0~1.2 25.0x50.0 1.0~1.2
45.0 1.0~1.2 38.0x38.0 1.0~1.2 25.4x50.8 1.0~1.2
48.0 1.0~1.2 40.0x40.0 / 30.0x50.0 /
50.8 1.0~1.2 / / / /

其他常見特殊規格

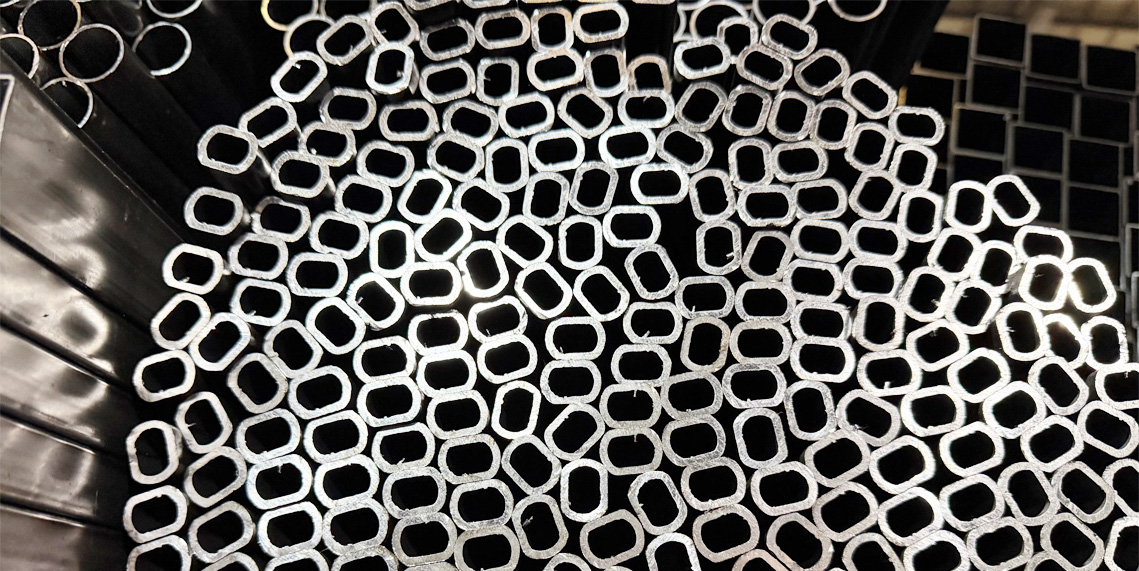

橢圓管規格(mm)
20x40 20x60 30x60 30x70 40x80
異形管規格(mm)
眼睛型 52x76 麵包型 20x50

于大鋼鐵.精密品質

歡迎來電或來信洽詢,我們將竭誠為您服務!
